HP LaserJet 1220N Transfer Roller Instructions

Originally written for: HP LaserJet 1200
Also applies to: HP LaserJet 1220
  • Date:

    Nov 08, 2012

These instructions explain installing the transfer roller on an HP Laserjet 1200 and similar models.

To order your replacement transfer roller for this printer, use the following part: R6050 (HP RG9-1483-000 Transfer Roller)

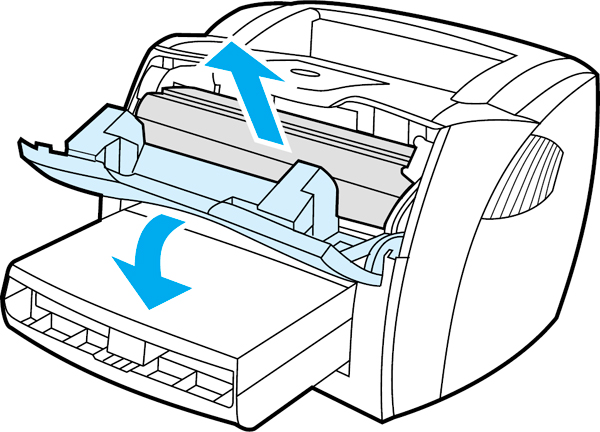

1) Open the toner cartridge door and remove the toner cartridge.

  • Open the toner cartridge door, which lifts the toner cartridge towards you.
  • Remove the toner cartridge.
    Caution: To prevent damage, do not expose the toner cartridge to light. Cover it with a piece of paper.

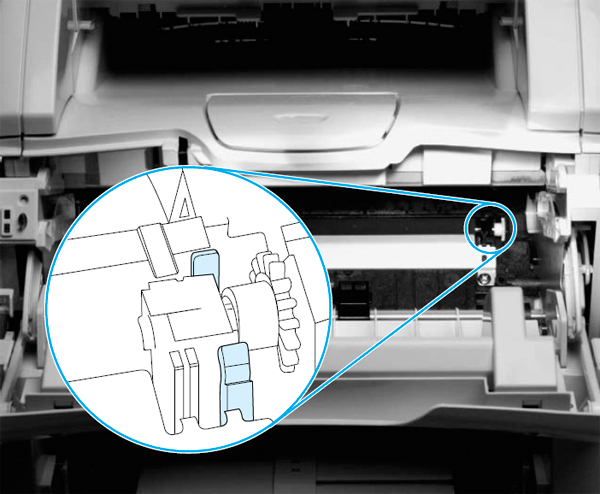

2) Use needle nose pliers to gently squeeze the two small tabs on the transfer roller.

3) Lift the transfer roller up, slide it to the right, and lift it out of the printer.

Note: Do not misplace the small grounding spring that is underneath the right side of the transfer roller.

Caution: Do not touch the black sponge portion of the transfer roller.
