HP LaserJet P4015 Maintenance Kit Instructions


Originally written for: HP LaserJet P4015n

Also applies to: HP LaserJet P4014, HP LaserJet P4014dn, HP LaserJet P4014n, HP LaserJet P4015dn, HP LaserJet P4015n, HP LaserJet P4015tn, HP LaserJet P4015x, HP LaserJet P4515n, HP LaserJet P4515tn, HP LaserJet P4515x, HP LaserJet P4515xm

To order your replacement maintenance kit for this printer, use the following part: A9556 (HP CB388A, CB388-67901)

The tools required for this install are: standard screw driver, one dust cloth, one pair of latex gloves.



Preparing for the maintenance kit installation:

Turn the printer off.
Caution: The fuser is hot. Before replacing the fuser, allow the printer cool for a minimum of 30 minutes.

If an optional duplexer is installed, lift it and pull it straight out.



Replacing the transfer roller:

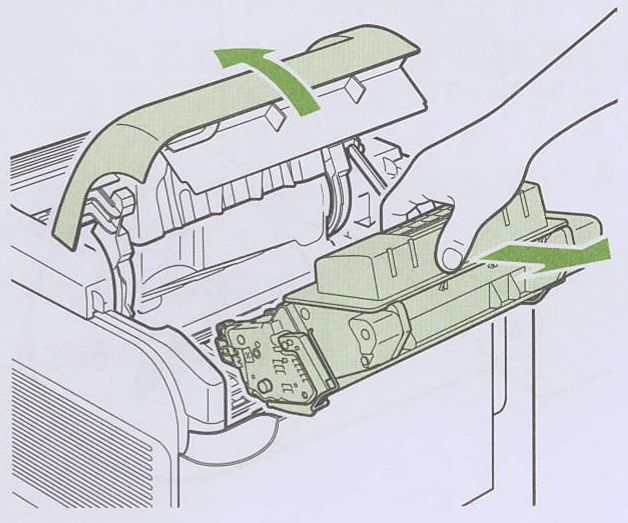

Open the top cover and remove the print cartridge.

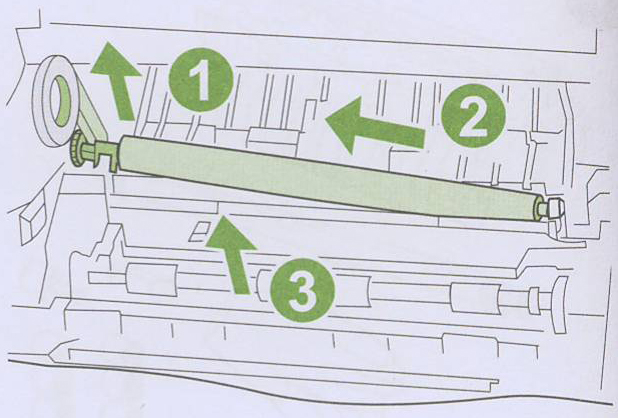

Use the plastic transfer roller tool (1) to slightly lift the left end of the metal shaft (2). Slide the transfer roller to the left and remove it (3).

Put on the supplied latex gloves and remove the replacement transfer roller from the bag.
Caution: Do not touch the new transfer roller with bare hands. Print quality problems could result from skin oil on the roller.

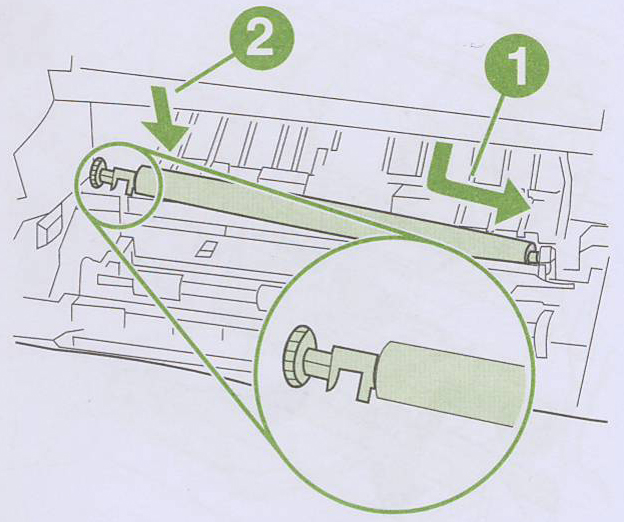

Position the transfer roller so the notch on the left end is facing downward. Slide the right end of the roller into place (1). Snap the left end into place (2).

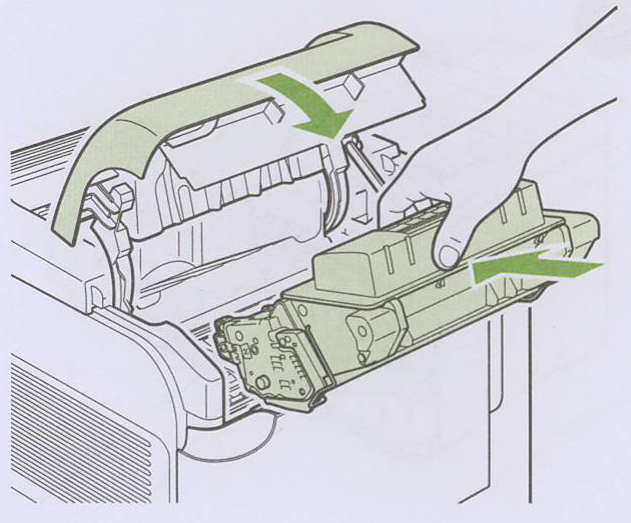

Reinstall the print cartridge, then close the top cover.



Replacing the Tray 2 feed and separation rollers:

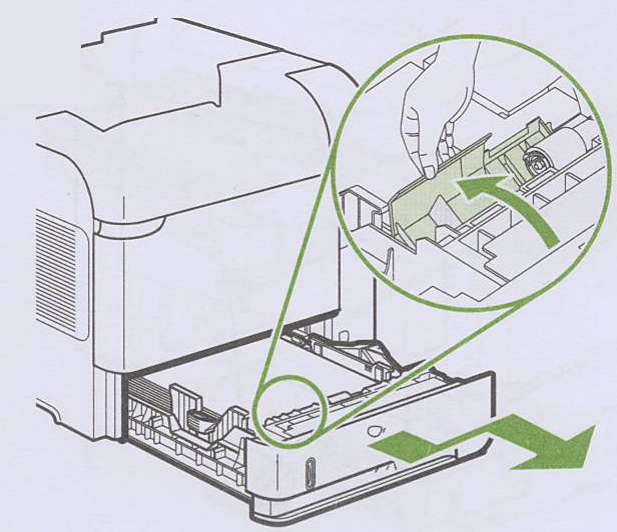

Pull Tray 2 out and then up to remove it. Remove any paper that is in the tray. Rotate the roller cover backward and hold it open.

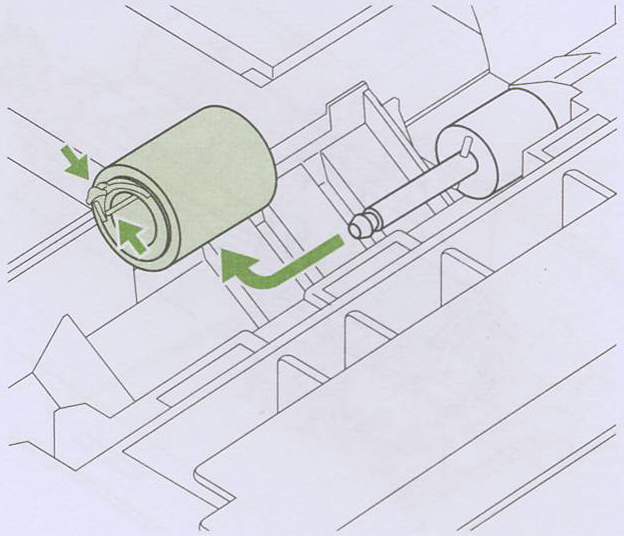

Squeeze the blue latches on the roller together and slide the roller to the left to remove it.

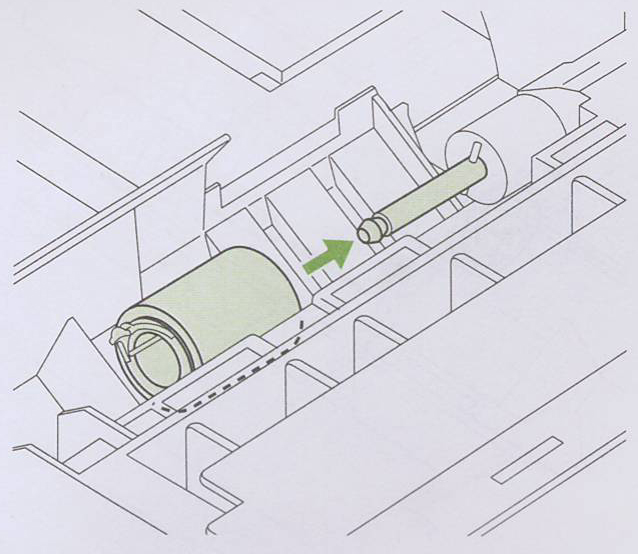

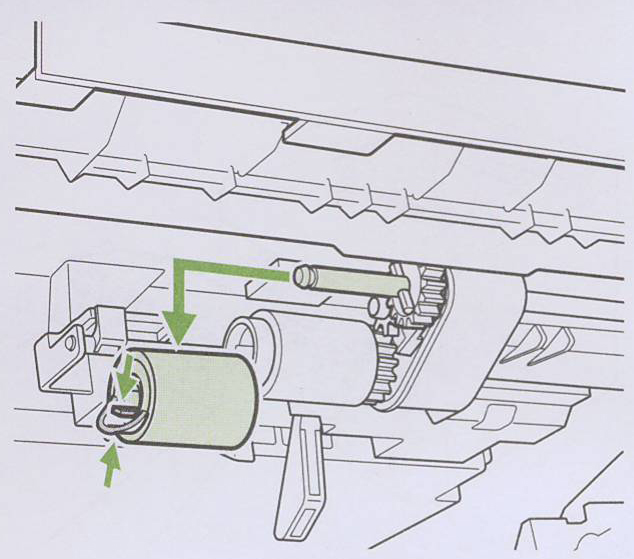

Slide a new roller onto the shaft and rotate it until it locks into place. Close the roller cover.
Note: The feed roller and separation roller for Tray 2 are identical.

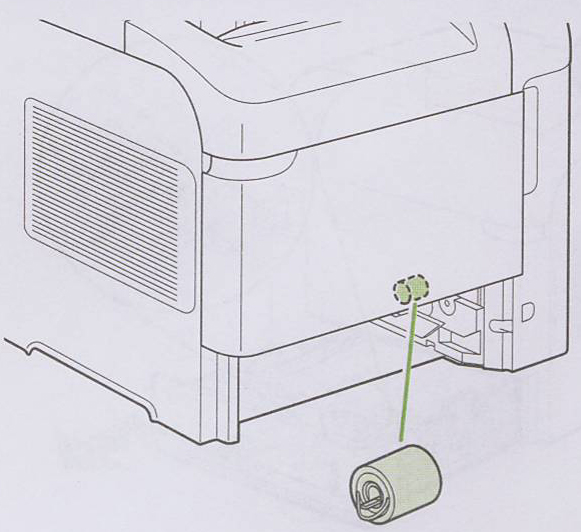

Locate the separation roller at the top center of the tray cavity. The separation roller is the roller closest to the front and has a blue plastic sleeve.

Squeeze the blue latches on the roller together and slide the roller to the left to remove it.

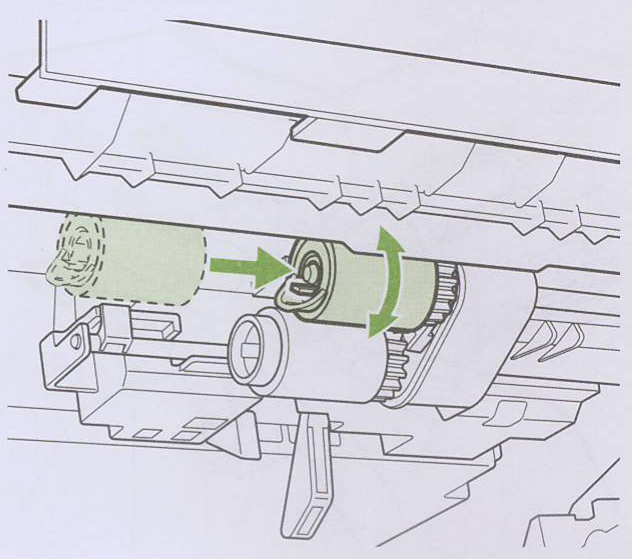

Slide a new roller onto the shaft and rotate it until it locks into place. Pull back on the roller to make sure it is locked in place.

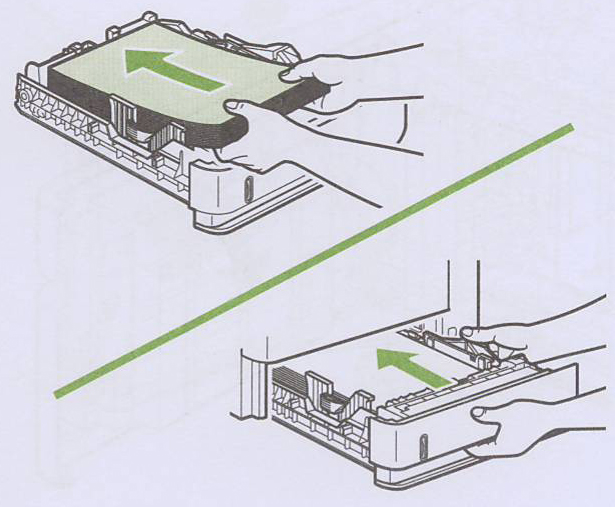

Replace the paper in the tray and slide the tray into the printer.

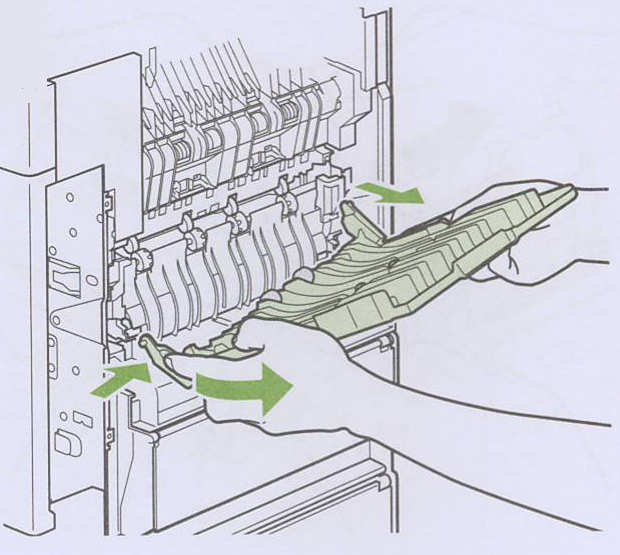

Remove the rear output bin by placing your finger near the left-side hinge. Push firmly to the right until the hinge pin clears the hole inside the printer. Rotate the output bin outward to remove it.

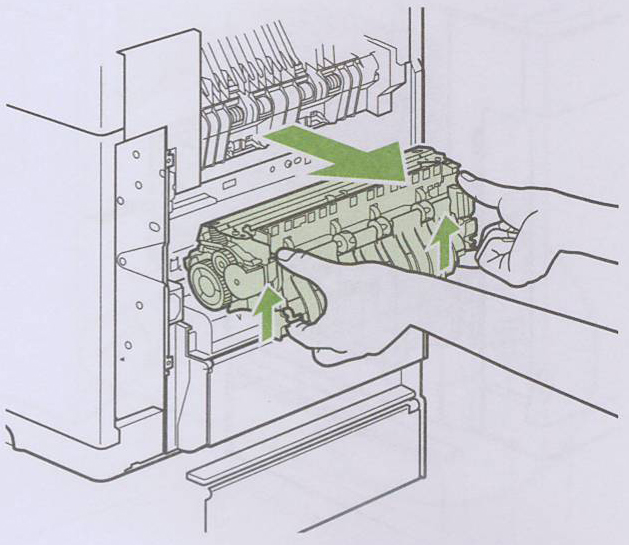

Push up on the two blue levers on the sides of the fuser and pull the fuser straight out.

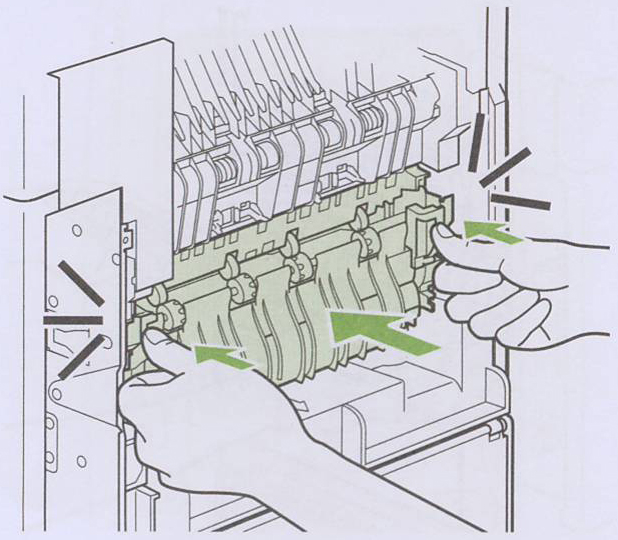

Push the new fuser into the printer until the blue levers on both sides click into place.

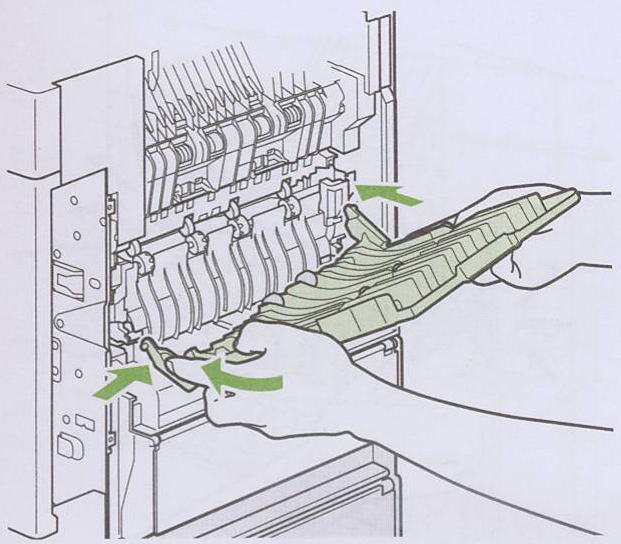

To reinstall the rear output bin, insert the right hinge pin into the hole inside the printer. Push inward on the left hinge and slide it into the hole inside the printer. Close the rear output bin.

If you have an optional duplexer, reinstall it by pushing it straight into the printer.



Resetting the maintenance counter:

Turn the printer on.

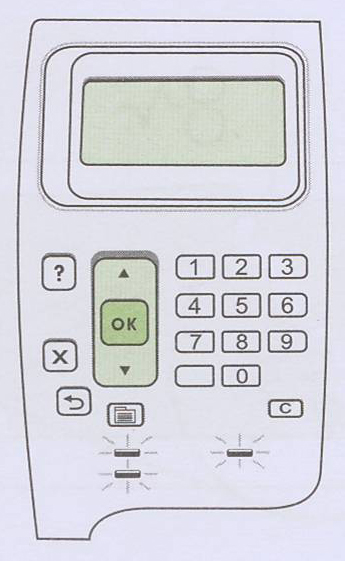

When the message XXX MB appears, press and hold the OK button until all three control panel lights turn on and stay on. Release the OK button. Press ^ until NEW MAINTENANCE KIT appears, then press OK.
